Licencovaný modul Irdeto od výrobce SMIT. Zaručuje velmi dobrou spolupráci s HD přijímači.
Možnost dekódování 8 stanic najednou (vhodne pro hlavni stanice atd).
pracovní prostředí
* Pracovní teplota: +5°C až +50°C
Maximální teplota pro stabilni fungovani je +50 ° C
Product Description:
- The CAM can be used on IRDs, which has DVB-CI interface
- Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
- The CAM supports Irdeto Softcell3.0 enhanced secure features(optional)
- With an authorized Irdeto smart card, the CAM gives access to DVB encrypted program
Chipset & TS bandwidth:
- Based on the Embedded 32-bit CPU (ARM7TDMI)
- Adopting advanced 0.18-micron technology
- Flash Size: 4M Bytes
- RAM Size: 384K Bytes
- TS process bandwidth: Up to 96Mbps
- Limited thermal aging test is over 24 hours
Physical & Electrical Characteristics:
- Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)
- Connector: 68-pin PCMCIA slot
- Operation voltage: 4.5V ~ 5.5V
- Operation current: <150mA
- Low power consumption: < 600mW
Standard:
- Plug and Play
- Compatible with DVB-CI standard (EN50221)
- Compatible with ETR289
- Compatible with ISO7816 T=0/T=14 protocol, Class A and Class B
- Compatible with MPEG-2/MPEG-4
- Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments
Descrambling & Filtering:
- Supporting common descrambling algorithm of Europe
- Multi services descrambling (Optional), up to 8 services descrambling
- Up to 24 configurable PID filters for filtering packet or section data
Software Upgrade:
- Support OTA software upgrade
- Secure Loader for more secure, stable and efficient software upgrade
Popis produktu

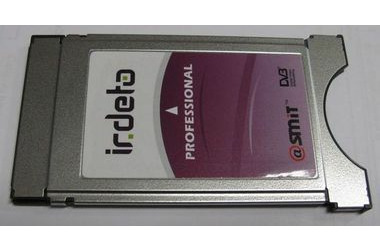

SMIT CA modul Irdeto Professional (8 streamů)
Možnost dekódování 8 stanic najednou (vhodne pro hlavni stanice atd).
pracovní prostředí
* Pracovní teplota: +5°C až +50°C
Maximální teplota pro stabilni fungovani je +50 ° C
Product Description:
- The CAM can be used on IRDs, which has DVB-CI interface
- Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
- The CAM supports Irdeto Softcell3.0 enhanced secure features(optional)
- With an authorized Irdeto smart card, the CAM gives access to DVB encrypted program
Chipset & TS bandwidth:
- Based on the Embedded 32-bit CPU (ARM7TDMI)
- Adopting advanced 0.18-micron technology
- Flash Size: 4M Bytes
- RAM Size: 384K Bytes
- TS process bandwidth: Up to 96Mbps
- Limited thermal aging test is over 24 hours
Physical & Electrical Characteristics:
- Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)
- Connector: 68-pin PCMCIA slot
- Operation voltage: 4.5V ~ 5.5V
- Operation current: <150mA
- Low power consumption: < 600mW
Standard:
- Plug and Play
- Compatible with DVB-CI standard (EN50221)
- Compatible with ETR289
- Compatible with ISO7816 T=0/T=14 protocol, Class A and Class B
- Compatible with MPEG-2/MPEG-4
- Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments
Descrambling & Filtering:
- Supporting common descrambling algorithm of Europe
- Multi services descrambling (Optional), up to 8 services descrambling
- Up to 24 configurable PID filters for filtering packet or section data
Software Upgrade:
- Support OTA software upgrade
- Secure Loader for more secure, stable and efficient software upgrade
Technické parametry
| Značka | |
| Značka | Nezatříděno |
| Stav zboží | |
| Stav zboží | Jen nové |
Technické parametry
| Značka | |
| Značka | Nezatříděno |
| Stav zboží | |
| Stav zboží | Jen nové |
Technické specifikace pro produkt SMIT CA modul Irdeto Professional (8 streamů) se mohou změnit bez výslovného upozornění. Obrázky pro produkt SMIT CA modul Irdeto Professional (8 streamů) mají pouze informativní charakter.
